ARP

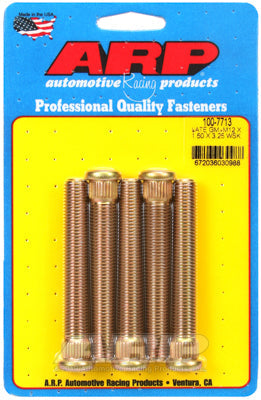

ARP Wheel Studs for Late Model GM M12 x 1.50 x 3.25" (5 studs per pack)
ARP Wheel Studs for Late Model GM M12 x 1.50 x 3.25" (5 studs per pack)
Regular price
$52.50
Regular price
$75.00
Sale price
$52.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Wheel Studs (1 pack contains 5 wheel studs)
Late model GM, Camaro, Firebird, Corvette M12 X 1.50"
Kit #: 100-7713
| Specifications | |
|---|---|
| Knurl Diameter | 0.509˝ |
| UHL | 3.250˝ |
| Knurl Length | 0.315˝ |
| Nose Length | 0˝ |
| Diameter - Pitch | M12 x 1.5 |
| Wheel Stud Hole Size - Cast Iron/Steel Hub | 0.493˝ - 0.503˝ |
| Cast Iron/Steel Hub Drill Bit Size (actual dim.) | 1/2˝ (0.500˝) |
| Wheel Stud Hole Size - Aluminum Hub | 0.493˝ - 0.492˝ |
| Aluminum Hub Drill Bit Size (actual dim.) | 12.5mm* (0.492˝) |
| * The nearest standard drill bit is too small. You will need to use an appropriately sized reamer to enlarge the drilled hole until it is within the tolerance for the material. | |
